- About ZW3D
- Versionen vergleichen
- New in ZW3D 2015 SP
Stylische Benutzeroberfläche, Klarer Workflow
• Die stylische Benutzeroberfläche bietet eine freundlichere Anwendererfahrung. Die am häufigsten verwendeten Befehle werden logischer und selbst intuitiv platziert, wobei sie gleichzeitig für die Anfänger die Effizienz steigern und Komplexität senken.
• Lies und bearbeitet die 3D Modelle von CATIA, NX, SolidWorks, Creo, und Inventor
• Hybrid Modeling ist ein revolutionärer und einzigartiger Ansatz, das ermöglicht den Nutzern, mit 3D solids, non-solids, Oberflächen und Drahtmodellen nahtlos zu arbeiten
• Das einzigartige Ready-Skizzieren Feature reduziert erheblich die Zeit der Skizze
• Behandelt einfach große Baugruppen, inklusiv Top-down und Bottom-up, mit ZW3D Burst™ Technologie
• Arbeitet mit STL, Punktwolke und gescannten Daten, um Oberfläche und 3D Modelle zu bauen
• Unterschiedliche Farben unterscheiden verschiedene Bereiche von Entwurfstatus: positiv, negativ, neutral
• Teilt Festkörper und öffnet Geometrie in Sekunden ohne Heilung der Modelle
• Fügt Standardteile durch eingebaute Gussformen-Bibliotheken auf einfache Weise hinzu, zum Beispiel Schrauben,Zentrierringe , Auswerferstifte und Kühlsysteme
• In einem einzigen Arbeitsgang können Sie Gießlauf oder Anschnitt schnell und einfach erstellen.
• Beschleunigt die Vorbereitungszeit mit mehrfacher Elektronenentfernung beim Senken
• Optimiert Kommunikation durch schnelle Erstellung von 2D Layout und Detailzeichnung
• Unterstützt OD und ID Schruppen, Schlichten, Gewindeschneiden, Einstechenbearbeitungen und andere Verfahren
• Erkennt automatisch die Bearbeitungsbereiche und wählt die richtigen Werkzeuge und Operationen. Vorbearbeitung und Oberseite Fertigbearbeitung für eine Komponente können in einem Schritt schnell erfolgen.
• Hole Tactic kann Bohrungs-Features auf Werkstücken automatisch erkennen, einschließlich Größe, Tiefe und Typen und dann zur Fertigbearbeitung die richtigen Werkzeuge und Abläufe auswählen.Dank Hole Tactic sparen Sie Bearbeitungszeit um 70%.
• Mit der Referenzfahrt kann das System den Bereich, der im vorherigen Vorgang nicht bearbeitet wurde, automatisch identifizieren und den entsprechenden Werkzeugweg erstellen
- Descargue ahora > >ZW3D 2015 SP(32Bit For Windows Vista/7/8/10)
- Descargue ahora > >ZW3D 2015 SP(32Bit For Windows XP)
- Descargue ahora > >ZW3D 2015 SP(64Bit For Windows Vista/7/8/10)
- Descargue ahora > >ZW3D 2015(32Bit For Windows Vista/7/8/10)
- Descargue ahora > >ZW3D 2015(32Bit For Windows XP)
- Descargue ahora > >ZW3D 2015(64Bit For Windows Vista/7/8/10)
- Descargue ahora > >ZW3D 2014 SP(32Bit)
- Descargue ahora > >ZW3D 2014 SP(64Bit)
- Descargue ahora > >ZW3D 2014(32Bit)
- Descargue ahora > >ZW3D 2014(64Bit)
Microsoft Windows XP, 2003, 2008 Vista, 7, 8 und andere
Prozessor zu CPU
Intel Core2Duo (2GHz oder höher)
Empfohlene Konfiguration: 4GB oder mehr
Unterstützt OpenGL 2.1 oder mehr
Mindestkonfiguration: 1024 x 768 VGA mit Echtfarbe
Empfohlene Konfiguration: 1280 x 1024 VGA mit Echtfarbe oder mehr
NVIDIA Quadro FX 580 (512MB oder mehr)
SOFT-KEY NETZWERK LIZENZMANAGER
DONGLE NETZWERK LIZENZMANAGER
Hinweis: Wenn Sie über eine Netzwerklizenz von ZW3D verfügen, können SIe den richtigen Netzwerk Lizenzmanager Setup zur Installation herunterladen und dann Ihre Lizenz aktivieren. Vielen Dank!
Until very recently, it was nearly impossible to surgically repair the human heart. In World War II, following extensive experimentation on living animal hearts, the first big advances made it possible to remove shrapnel lodged in the hearts of soldiers. Coronary surgery has made huge strides since then, but despite the development of heart-lung machines, new drugs, balloon angioplasty, and devices such as pacemakers, stents and artificial hearts, surgeons have still relied on living animals and patients for training to become proficient in treatment options. Clearly, surgeons would prefer a life-like learning environment in which they could practice a wide range of procedures on a variety of cardiovascular conditions. Traditional methods, however, have been expensive, not always readily available, and sometimes dangerous. Thanks to new technology being pioneered by Guidant Corp., surgeons are now better able to tackle challenging procedures without life-thr...
Product Information (click on an item for details)
|ZW3D 2015 Features||ZW3D Lite||ZW3D Standard||ZW3D Professional||ZW3D Premium||ZW3D 2X Machining||ZW3D 3X Machining|
|Translators for IGES, STEP, DWG/DXF, |
VDA, STL, JT, etc.
ZW3D has super fast geometry translators for importing nearly any type of file, including STL and image files (jpg, bmp, tif). Poor geometry will not stop ZW3D because of our support open shape modeling.
Import and Export 3D geometry fast and eliminate model repair time.
- • IGES: ZW3D supports the latest IGES standards and works seamlessly with non-solids.
- • STEP: Import AP 203 and 214 and export AP 203. STEP assembly/layer support.
- • Parasolid: ZW3D supports the latest parasolid libraries and properly exports ZW3D Assemblies to parasolid assemblies or bodies.
- • STL: STL files can be imported, modified and exported. Use the advanced design and CAM tools to surfaced or machined STL.
- • Supported version of the ACIS import is up to R25.
- • CATIA V5 supported version has been changed from R6~R23 (V5~6R2013) to R8~R24 (V5~6R2014).
- • New “Import Geom set as layer” option for CATIA V5 import.
- • Supported version of the Inventor import is up to 2015.
- • Images: Import and emboss images on model faces with ZW3D Designer or greater.
- • Force heal: Forces a best match from open edges to achieve a solid when possible.
- • Directly export Z3 files as Catia V4/5 format.
Fast 2D to 3D model conversion or Maintain old 2D DWG files with ZW3D
- • Import and Export of 2D DWG
- • Uses the latest DWG direct™ library from open DWG Alliance.
- • Handles Unicode (double byte characters) which is primarily found in Asian DWG translations.
- • Accurate layer, colour, hatching and ACAD Font support.
- • Users can specify the units of measure to import a DWG file.
- • Directly Copy and Paste Entities from ZWCAD to ZW3D.
Convert images to 3D Models
- • Import 2D Images (jpg, tif, bmp) into sketches.
- • Accurate raster to vector conversion with a minimum entities.
- • Convert curves to lines and arcs with complete continuity control.
- • 2D gap checking.
|Directly open, edit and save 3D models from Catia, Inventor, NX, Pro/E, Solidworks, ACIS and Solidedge||Enhanced||Enhanced||Enhanced||Enhanced||Enhanced||Enhanced|
|SmoothFlow Direct Edit & Quick Edit|
ZW3D features a next generation 3D SmoothFlow design paradigm. SmoothFlow will make ZW3D the fastest, most effective 3D CAD system available anywhere. It combines the speed and flexibility of direct modeling with the precise control of dimension-driven designs, without losing the features and functionality of history-based modeling. You can modify features quickly and effectively on native or imported geometry without history regeneration.
|Multiple Layout, Multiple File and Multiple Window||Enhanced||Enhanced||Enhanced||Enhanced||Enhanced||Enhanced|
ZW3D allows designer to create different 2D sheet in one layout. The non-activated sheet is dimmed.
Multiple file tab greatly enhances the operational flexibility. Designer can easily transfer between files.
Creating a new file or adding a new object into the current file becomes more convenient.
|Sketching and QuickShapes||Enhanced||Enhanced||Enhanced||Enhanced||Enhanced||Enhanced|
Hybrid modeling makes it possible for engineers to take advantage of the speed of solids with the flexibility of Class A surfaces. When you can handle solids and surfaces seamlessly in the same environment, your ideas come to life.
Sketching is easy in ZW3D especially with tools such as Quick Draw and Ready-sketch. These automation tools allow users to create fully-constrained sketches with a single command. ZW3D users have the power to work with fully-constrained, partially-constrained or unconstrained geometry. Freedom by design.
- • “Ready Sketch Text” will not be converted to regular curves after its creation and can be redefined, like changing its characters, font or size.
- • Easier Curve Creation, Edit and Quality Inquiry.
- • A handle is provided on the pick point where a click happens on a CV curve, to help to drag to change the tangency, tangency magnitude and radius, or position.
- • “Power Trim” command offers a very easy and intuitive way to trim or delete entities.
- • To multiply an entity, “Copy” is a way to do. Now there is another new way - “Pattern”.
- Learn more >>
|Hybrid 3D Shape & Feature Modeling|
Hybrid 3D Shape Modeling
- • Advanced solids with built-in primitive shapes
- • Superb shape simplification for direct editing of any geometry
- • Import and export of all industry standard formats
- • Feature commands for holes, threads, lips and rib networks
- • Integrated Model healing
- • 3D engraving on solids and surfaces
- • Unlimited undo/redo capability
- • Variable-offset shelling and draft
- • Part comparison utilities
ZW3D supports true parametric (dimension driven) feature-based modeling, in addition to a range of direct editing commands not found in traditional feature-based modelers. For instance, parts can be moved into machine or mold position without effort, quickly offset any face with a right-mouse click, change draft angles and add fillets, remove holes, or completely reshape the part with morphing. These edits can be made to open or closed shape, points, wireframe, STL or solid/surface models.
ZW3D also provides tools for removing features on native or imported geometry using the simplify or erase and fill gaps commands. Mold and Die designers can split imported geometry without having to spend hours healing parts. ZW3D also has support for reducing the time to regenerate History with the History Backup and Encapsulate commands. The recent introduction of subparts expands on this idea. ZW3D gives the user quick and simple tools to let them work with native and imported geometry.
|Show-n-Tell™ Built-in Tutorials|
Show-n-Tell™ Built-in Learning
Learn ZW3D at your own pace on your own schedule. Get up and running fast with Show-n-Tell 3D tutorials, that work like a 3D book. The Show-n-Tell™ Tutorials system is built into all of the ZW3D products, providing on screen step-by-step lessons on a wide range of topics. Show-n-tell is also has a complete set of authoring tools and is used for design review assembly instructions.
Download Tutorials from the Learning Center
|2D Detailing,Sections, |
Details/Bom & hole Tables
2D Layout & Detailing
Whether laying out 3D models or using traditional drawing techniques, ZW3D makes it simple to create production drawings and details. Creating views of 3D models and assemblies is easy especially since all views update automatically to reflect model or assembly changes.
- • Automatic layout with projection, sectioning and detailing
- • Hidden line, wire frame, shaded and fast hidden line views
- • Advanced sections of trimmed parts or trimmed surface
- • QuickDraw geometry with One-touch trimming & dimensioning
- • Annotate views, sections and details with True Type Fonts
- • Assembly exploded, detail, configuration and history state views
- • GD&T Editing and creation
- • Bill of Material, Hole & Electrode tables with auto-ballooning
- • Title Header fill-in with attributes, variables or images (logo display)
- • One-touch model recall
ZW3D burst technology offers efficient handling of 10,000 part assemblies or larger. By special handling of display data, ZW3D minimizes memory usage which allows users to efficiently manipulate and manage assemblies from design prototyping through manufacturing.
- • Strong support for assembly-centric design
- • Top-down or bottom-up assembly design
- • In-place assembly shape modeling
- • Editable Bill of Material with Excel link
- • On demand data retrieval
- • Assembly patterns
- • Interference checking
- • Exploded views (automatic & interactive)
- • Part lookup with predefined search paths
- • Constraint-based component positioning
- • Assembly history regeneration offer more and better edit behaviour.
ZW3D healing with new healing function can analyze and quickly repair abnormal conditions found in the geometry of imported files (e.g., vertex points, edge curves, UV curves, and face boundaries). These abnormalities include gaps that are impossible to machine. ZW3D can resolve thousands of such problems in minutes. Even though ZW3D can go straight to work on poor geometry, great healing tools are still essential to anyone that works with imported data.
- • More topology errors to detect
- Open edge – new option on form
- Tiny edge
- Spur edge - new option on form
- Unclosed/degenerated edge
- Edge with three or more faces
- Sliver face - new option on form
- Duplicate faces –new option on form
- Loop intersection
- Wrong loop hierarchies
- • More error types to heal
- Open edge – new support
- Unclosed/degenerated edge – new support
- Tiny /Spur edge
- Pre-edge of loop is tiny
- Sliver/Duplicate faces
- Pre-edge of loop is out of surface parameter bound – new support
- Gap between vertex and edge
- Gap between edge and pre-edge
- Gap between edge and pre-edge end points
- Gap in loop
|Expert Assembly & Motion|
Expert Assembly & Motion
With animation tools, designers can demonstrate the design’s basic operation as they would with a real life product. This can be saved as a *.AVI video.
- • Easy to define the alternate parts and configurations.
- • Compare two parts and show the differences between them.
- • Use vivid animation to demonstrate the product to anyone, including assembly or disassembly process, product movement.
|Freeform Class-A surfacing & Shape Morphing and Wrapping||Enhanced||Enhanced||Enhanced|
- • Class-A surface modeling, such as: Blend face, UV curve mesh
- • Surface matching, merging, smoothing and control point editing
- • N-Sided & FEM blends with continuity control and gap detection
- • Smart surfacing - rails, splines, drive curves
- • Advanced lofting & variational sweeps
- • Emboss a high precision surface from a raster image
- • Support solid, surface and STL data to do flexible morphing and wrapping
Flex tools are useful for deformation design. With intuitive tools, designer can quickly modify complex models for many different applications including concept design, product design, industrial design, and so on. Features include Cylindrical bend, Toroidal bend, Twist, Taper and Stretch. Solid shape and surface both are supported.
|Design Optimizer,Compare,Real-View & Checking||Enhanced||Enhanced||Enhanced|
Real-view & Checking

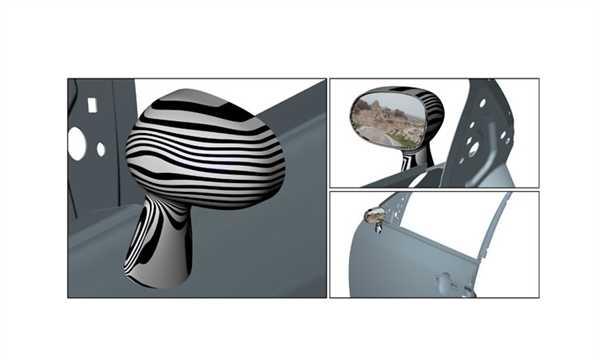

Users can continuously work on a model while displaying either a zebra stripe or draft analysis thus providing instantaneous, real-time feedback without interruptions or slow-downs.
ZW3D hybrid modeling lets users model instantaneously with solid, surface or wire-frame geometry in real-time checking mode which significantly reduces interruptions to their session or system degradation. For example, an industrial designer can simply turn on zebra striping to check curvature while modeling a product and then instantly switch over to draft checking to see if there are any draft problems.
ZW3D has an assembly level display tool that lets users toggle the display mode of any component. So, if a user wants to see inside a gear box or through a mold plate, instead of hiding parts, all he has to do is right-click a part and render it as transparent or wireframe. ZW3D gives the user even more control by allowing multiple instances of the same part to be displayed differently. The use of these display tools results in time saved designing and communicating ideas.
Dynamic Slicing in ZW3D goes beyond the norm as simply a "cool visualization tool." One of the key features of dynamic slicing is the real-time interference check. Users can see all interferences as the slice plane is moved across the assembly. This functionality gives instant interference feedback and virtually eliminates the need to process a separate interference check. Users can continue to model while in a sliced display mode and can save sliced views to be recalled later.
Hours of design time can be saved with ZW3D's Design Optimizer. Design Optimizer is an equation solver that is useful for driving specified design parameters to solve an engineering problem. For example, an engineer can control which parameters of a design can be changed to optimize a model to a lowest mass condition or drive a design to a specific volume. Design parameters can be held within a range and can also manually tweaked to get instant feedback.
|Links to FEA, PDM, CMM and Macro recorder||Enhanced||Enhanced||Enhanced|
Links to FEA, PDM, CMM
- • FEA(SimWise):ZW3D links directly with SimWise exporting an optimized data set for analysis. ZW3D supports the STL requirements of other third Party analysis products.
- • PDM: Workgroups need an easy to use solution for document control. ZW3D provides tools for file check-in/out, read-write permissions, version and revision control and attribute searching. ZW3D also supports a wide range of third party PDM systems.
- • CMM: Point files can be imported directly into ZW3D from any coordinate measuring machine or 3D scanner. ZW3D also has direct links to Romer and Microscribe arms for live point creation.
- • Directly link With Keyshot without a Keyshot license, users can create more attractive rendering. Download Keyshot
|Sheet Metal Design||Enhanced||Enhanced||Enhanced|
- • Full and partial flange creation with automatic bend radius and relief
- • Easy lofted flange creation with two open profiles
- • Simplified tab and cut creation
- • Corner closing with relief
- • Easy S-Bend creation
- • Flexible, easy to create louvers and dimples
- • Folding and unfolding of entire part or selected bends
- • Flexibly fold a face along a line
- • Easy modification of bend angle or radius
- • Features can be added in folded or unfolded state
- • Tagging of bends for working with non-native parts
- • New Excel-driven Support for K-Factor
|Reverse Engineering - Point Cloud||Enhanced||Enhanced||Enhanced|
- • Create surfaces and STL models from millions of points
- • Use point thinning to reduce data while maintaining shape integrity
- • Point cloud surface fit analysis tools
- • Point file display and edit tools
- • Large STL data handling
- • Import extremely large STL files
- • Boundary edge tracing
- • Create a closed multi-tangent-surface model from a 360o scan
- • Direct interface to Microscribe or Romer Cimcore CMM machines
- • Directly get cross section curve from STL model
- • New function to deal with STL models with more powerful capability

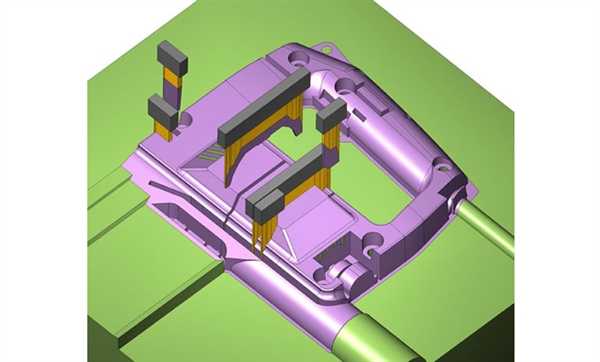

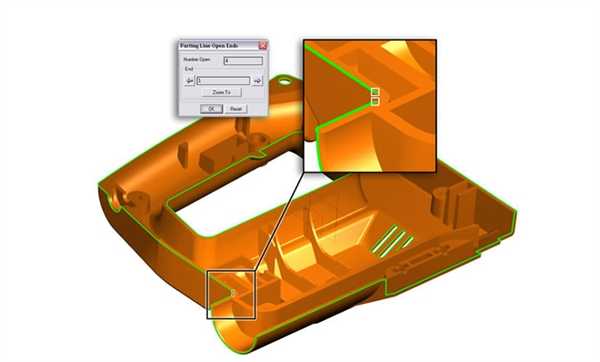

|Core Cavity QuickSplit,Parting Lines & Surfaces||Enhanced||Enhanced|

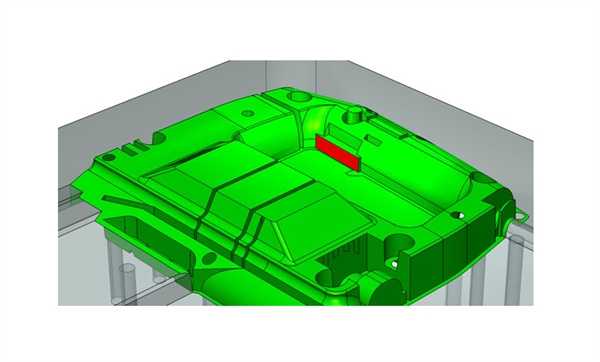

ZW3D can automate core cavity creation. ZW3D includes utilities to automate create core and cavity region, parting lines and faces in mold design, which provide the flexibility for mold designers.

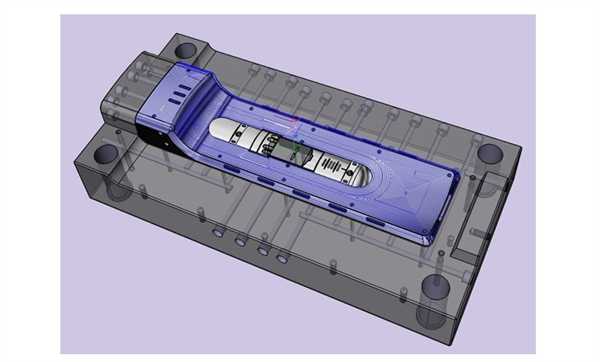

|Basic Mold Base Library|
Basic Mold Base Library

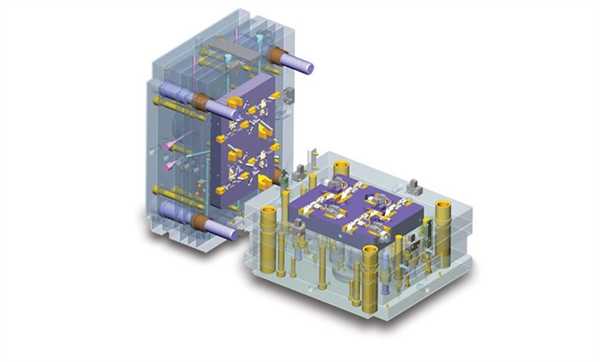

Insert complete mold bases from DME, FUTABA, HASCO, LKM, MEUSBURGER and OXA_RABOURDIN , with all of the purchased components and proper BOM information.
Many kinds of standard parts are available, including screw, guide pillar, ejector pin, locating ring and so on.
|Cooling Channels,Slides,Inserts & Electrodes|
Many efficient assistant tools are provided to create the cooling channels, slider, insert and electrodes.
Electrode tables can be automatically created, including electrode origin information.
- Frame structure usually works as the skeleton of a product housing or the some under structure. It consists of section bars with proper end treatments, and sometimes uses weld bead to connect each other. Now, all these applications are provided by the new Weldment module.
- • Flexible to Create Structure Member, End Cup, Weld Bead, Gusset.
- • Support user to customize their own profile.
ZW3D 2X turning includes outer diamater and inner diameter roughing, finishing, threading, grooving operations, as well as hole making operation.
The 2-axis milling tactic provides a rich set of tool paths for rough stock removal and surface finishing. It also provides the means for the operator to make holes or cut access holes with drills or mill tools. The 2.5-axis tool paths include profiling and pocketing by collapsing step-over (inward or outward), parallel linear cuts, or continuous spiralling.
ZW3D automatically recognizes hole features and selects the proper tooling, spot drill, tap, c'bore or c'sink. ZW3D gives the users total control over parent tools. You can drill, bore, ream or tap points, circles, cylinders, half cylinders(common with imported parts) and native or imported holes.
Automatic generation of correct and efficient 3D CNC machining plans requires the identification and association of features such as holes, slots and pockets, with a distinctive manufacturing process.
Using ZW3D’s combination of tools, automation and shop-floor machining logic, ZW3D breaks down part topology into solid features and then analyzes the capabilities of library tools to produce an effective, efficient machining plan and generate a realistic machining work flow.
|3-Axis Surface Milling|
3-Axis Surface Milling
3-axis milling provides several families of tool paths based on different algorithms for positioning the tool. Each has its place in either roughing or finishing parts.
|QuickMill™ High Speed Milling||Enhanced||Enhanced|
QuickMill™ High Speed Milling
Handle your toughest jobs: The ZW3D QuickMill suite offers dramatic speed and tool path improvements for tool and die machining applications-yet has exceptional ease of use to minimize training and support. A full range of material handling and cutting techniques are supported to allow extremely complex milling in 3D. Even difficult steep and shallow mold situations are easily performed in ZW3D QuickMill with advanced limiting, which eliminates milling problems in molds with steep walls or where a part needs to be progressively milled with a variety of tools and holders.
Reduce Programming Effort: Intelligent Machining Automation is made possible by the way QuickMill™ takes a unique whole part approach to machining. Users establish their own rules for machining a part, which ZW3D can use as a knowledge base for intelligently machining for a vast array of other parts. This greatly reduces the time required for programming new parts. In essence, ZW3D captures and uses the knowledge and logic of an experienced machinist for automatically generating machining.
|Smoothflow Adaptive Feedrate Control|
SmoothFlow™ technology mills cavities and pockets safely and efficiently by maintaining constant material removal during roughing thus extending tool life and reducing machine wear and tear. AFC (Adaptive Feedrate Control) automatically adjust federates based on tool loading to ensure a constant chip load. Higher feed rates are possible without the risk of tool breakage by reducing the radial pressure on the tool spindle, essential for optimizing HSM machines.
SmoothFlow™ motion is softly contoured with corners and tight areas safely milled without full width cuts which prevents tool and spindle overload. All of these factors are critical for unattended machining to achieve extended tool life and reduced milling time. ZW3D SmoothFlow™ gives programmers the confidence to boost productivity with ideal feed-rates and cutting technology.
|Minimum Tool Length Evaluation|
Minimum Tool Length Evaluation
ZW3D can automatically detect the minimum tool length to eliminate the human errors and increase the work efficiency. The accurate calculation of the minimum tool hang length ensures the safety of your machining.
|Tool Path Editor|
Tool Path Editor
New tool-path editor tools enable users to easily and intuitively edit the entire or partial tool-path for higher machining efficiency.
- • Update the edited elements without re-calculating the whole tool-path, greatly saving programming time.
- • Easily trim the partial tool-paths with window pick, chain select and polygon select.
- • Freely change the sequence and direction of the tool-path with the reorder functions.
- • Quickly change lead in and lead out types of partial tool-paths in terms of manufacturing request with the re-link tools.
|CAM folder and Icons||Enhanced||Enhanced||Enhanced|
Some icons of CAM Manager are modified, which make the operations status more clear. Auto-rename is full-supported in all folders including Component Folder, Feature Folder，Frame Folder, Operation Folder, NC Folder.
|Auto Assign Speed Feed Table|
ZW3D provides the ability to associate speed and feed tables with materials, tools and even operation types. The user will be able to set a mode causing ZW3D to automatically assign the speeds and feeds which are the best match for the user’s settings when the tool is assigned to each operation.
|ZW3D Post Processor|
ZW3D Post provides advanced post-processing capability for converting cutter location data (APT-CL) into machine specific code (G and M code) required by CNC machines. ZW3D Post is integrated into all ZW3D machining bundles.
ZW3D Post Features:
- • Supports all classes of 2 and 3 axis milling machines
- • Access to all internal postprocessor variables
- • User-definable postprocessor syntax
- • CL file conversion
- • Automatic conversion of point to point data to CNC format
- • State-of-the-art technology using Windows GUI
- • An easy to use macro language
- • 2X and 5X drilling cycles
- • Canned cycles support
- • Conversational output style support
- • 5 Axis indexing
- • Support for head attachments for 5 face milling
|CNC Output Manager||Enhanced||Enhanced||Enhanced|
CNC Output Manager
- • Easy to manage operations such as edit, sort, inquire, suppress and change sequence etc.
- • Automatically view how they are machining and check if there are some problems by tool-paths simulation.
- • Defines settings to output NC code for specific machining purpose.
- • Support to view CL data and GM code output graphically and quickly.
- • New output list of operation with new layout of new template is provided.
- • New Output in CL File to support various code like cycle.
Accurate Error Detection & Reporting
Solid Verify detects errors such as:
- • Incorrect or misread blueprints
- • Inaccurate programming
- • Incorrect tool path motions
- • Rapid motion contact
- • Collisions with fixtures and clamps
- • Tool shank and holder collisions
- • Adding Stock Automatically in Solid Verify
The Verification module enables you to view and analyze the geometry of the cut part. You can zoom, reverse, and rotate the model.
Solid Verify can be accelerated to quickly verify lengthy machining operations or to advance through operations that you don't need to simulate.
|ZW3D 2015 Features||ZW3D Lite||ZW3D Standard||ZW3D Professional||ZW3D Premium||ZW3D 2X Machining||ZW3D 3X Machining|
