CAD software discussion forum > CAD > Error in ZWCAD. Help!!! errorr saving to file, the file may be corrupt

Error in ZWCAD. Help!!! errorr saving to file, the file may be corrupt

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 1 of 23

 Error in ZWCAD. Help!!! errorr saving to file, the file may be corrupt
13-07-2009 08:28 . pm | View his/her posts only
Hi all,



i came across this error in ZwCAD. Please help. I save the drawing 3 times and if i save it a fourth time it says this error. What is it? Its frustrating.

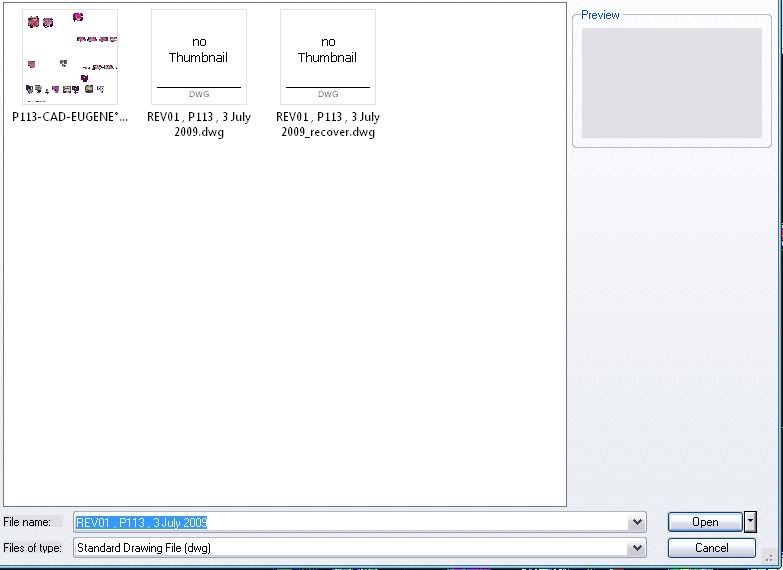

Then it shows no thumbnail in menu's.

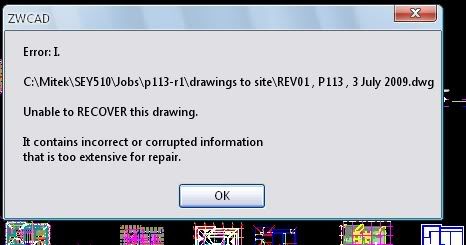

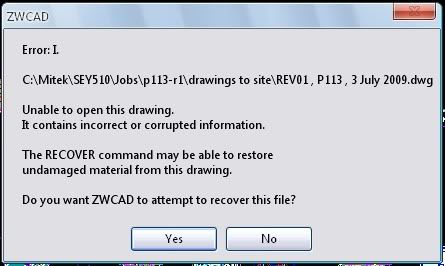

Then when i open it i get this...







When i click yes it shows this.







i lost about a days work.

F..............!!!!!!!



Please help...







Human2009-07-13 21:22:25

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 2 of 23

14-07-2009 02:20 . pm | View his/her posts only
Any Comment? Or must i send it to China AGAIN.

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 3 of 23

14-07-2009 03:33 . pm | View his/her posts only
Going...

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 4 of 23

14-07-2009 06:22 . pm | View his/her posts only
Going....

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 5 of 23

14-07-2009 06:22 . pm | View his/her posts only
goneHuman2009-07-14 18:22:45

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 6 of 23

14-07-2009 09:28 . pm | View his/her posts only
Ok.....

I know now after a whole day of blood sweat and tears.

If i delete the raster image that's in my "layout tab"(my company logo).

It saves!!!!!

If i put it back. It does not save. hmmmmmm.

Dont know the reason.

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 7 of 23

15-07-2009 10:00 . am | View his/her posts only

Dear Human,





I

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 8 of 23

15-07-2009 05:15 . pm | View his/her posts only
[QUOTE=Amanda]
<P style="MARGIN: 0cm 0cm 0pt; TEXT-ALIGN: left; mso-pagination: widow-orphan" align=left ="Msonormal"><SPAN lang=EN style="FONT-SIZE: 9pt; COLOR: black; FONT-FAMILY: 'Verdana','sans-serif'; mso-fareast-font-family: 宋体; mso-bidi-font-family: 宋体; mso-font-kerning: 0pt; mso-ansi-: EN">Dear Human,<?:namespace prefix = o ns = "urn:schemas-microsoft-com:office:office" /><O:P></O:P></SPAN>


<P style="MARGIN: 0cm 0cm 0pt; TEXT-ALIGN: left; mso-pagination: widow-orphan" align=left ="Msonormal"><SPAN lang=EN style="FONT-SIZE: 9pt; COLOR: black; FONT-FAMILY: 'Verdana','sans-serif'; mso-fareast-font-family: 宋体; mso-bidi-font-family: 宋体; mso-font-kerning: 0pt; mso-ansi-: EN">?<O:P></O:P></SPAN>


<P style="MARGIN: 0cm 0cm 0pt; TEXT-ALIGN: left; mso-pagination: widow-orphan" align=left ="Msonormal"><SPAN lang=EN style="FONT-SIZE: 9pt; COLOR: black; FONT-FAMILY: 'Verdana','sans-serif'; mso-fareast-font-family: 宋体; mso-bidi-font-family: 宋体; mso-font-kerning: 0pt; mso-ansi-: EN">I

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 9 of 23

15-07-2009 06:16 . pm | View his/her posts only

Dear Human,

Thank you for your detailed information, i think i've got the point now. When you sent the drawing to your colleague, you forgot to attach the image together, right? We provide etransmit function, it can automatically pack the drawing with associative files to one compressed file. Please enjoy it! Command: ETRANSMIT

Thanks again for your kindly sharing!


Best Regards!


Sincerely yours,


Amanda






Amanda2009-07-15 18:18:49

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 10 of 23

15-07-2009 09:52 . pm | View his/her posts only
No problem.

I actually forgot about the etranmit function.


Thanks for reminding me.

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 11 of 23

16-07-2009 08:33 . am | View his/her posts only
It's my pleasure!Tongue

Rank: 1

raul322

Newbie

posts: 0

Registered: 2009-8-14

Message 12 of 23

14-08-2009 02:30 . pm | View his/her posts only
I've Zwcad2008i en and i have the same problem.

Yesterdayevening I've worked in the file, saved and went to bed. This morning I open the file and can't save anymore. The same file, nothing changed, the same computer...

If I copie the drawing to another file, I can save but then I loose my all my layouts I made, which means a couple hours work lost.!

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 13 of 23

14-08-2009 04:44 . pm | View his/her posts only


Hi raul322,


Is there any prompt? It's so kind if you sent the drawing to us including the drawing lost layout and the drawing with them. we make sure that we will keep them confidential. And please tell us the detailed steps of operation which is very helpful to fix the problem.

Our technical support email adress: tech@zwcad.com

Sincerely yours,
Amanda

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 14 of 23

02-06-2010 03:11 . pm | View his/her posts only
I have the similar problem.

With one diference. It says Error: C.

I use external disc (WD My Book - FAT32).

If I open the file from my computer and then save it to My book it's OK.

But then when I want to open it from MY book I get this:



after pressing OK I get this:


And this is hapening with every dwg file.


Please help


(sory for bad english)

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 15 of 23

02-06-2010 03:15 . pm | View his/her posts only
And

I can open the same files with AutoCAD.
The problem is just in ZWCAD 2009

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 16 of 23

04-06-2010 01:59 . pm | View his/her posts only
I found that the problem is in leters č ? ? Č ? ? in file name.
(I dont heve this problems with AutoCAD or Word or any other programs)

Any ideas why is that a problem?student2010-06-04 14:13:37

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 17 of 23

07-06-2010 05:43 . pm | View his/her posts only
Please set the Regional Language as Czech and then the problem fix.

Start > Control Panel > Regional and Language Option > Advanced tag > Language for non-Unicode programs > Choose Czech > Apply> OK

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 18 of 23

08-06-2010 02:50 . pm | View his/her posts only


Thank You for your help.


But it doesn't help. I still have the problem.

I guess, I'll have to use only english letters.

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 19 of 23

08-06-2010 03:02 . pm | View his/her posts only


Please try with the latest version ZWCAD 2010 (vernum=2010.05.31(14725))

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 20 of 23

08-06-2010 05:04 . pm | View his/her posts only


If I install the latest version, will I need a new license code?


Or is an old license code good for newer version?

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 21 of 23

08-06-2010 10:00 . pm | View his/her posts only


The license for ZWCAD 2010 is also available for ZWCAD 2010 Update Patch (vernum=2010.05.31(14725)).

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 22 of 23

21-06-2010 02:04 . pm | View his/her posts only
My manager said no.
So we will wait until license expires.

Thanx for helping

Rank: 1

OldForumPost

Newbie

posts: 0

Registered: 2012-1-14

Message 23 of 23

21-06-2010 02:57 . pm | View his/her posts only
Hello student,

the license code for ZWCAD 2009 is also available for ZWCAD 2009i.
The license code for ZWCAD 2010 is also available for ZWCAD 2010 Update patch.

But of course the license code for ZWCAD 2009 is not available for ZWCAD 2010. Did your manager mean that the license code your company purchased is for ZWCAD 2009?


By the way, we offer two kinds of encryption, the hardware encryption and the software encryption. The hardware encryption license code is permanent. If you are using the hardware encryption, no need to worry about the expiration. For the soft encryption, we offer permanent license or temporary license with a expire date.




Jenny2010-06-21 15:12:44
