help with lighting in VX

Rank: 1

Rhys

Newbie

posts: 0

Registered: 2006-5-15

Message 1 of 3

 help with lighting in VX
24-05-2007 05:37 . pm | View his/her posts only
Hi all

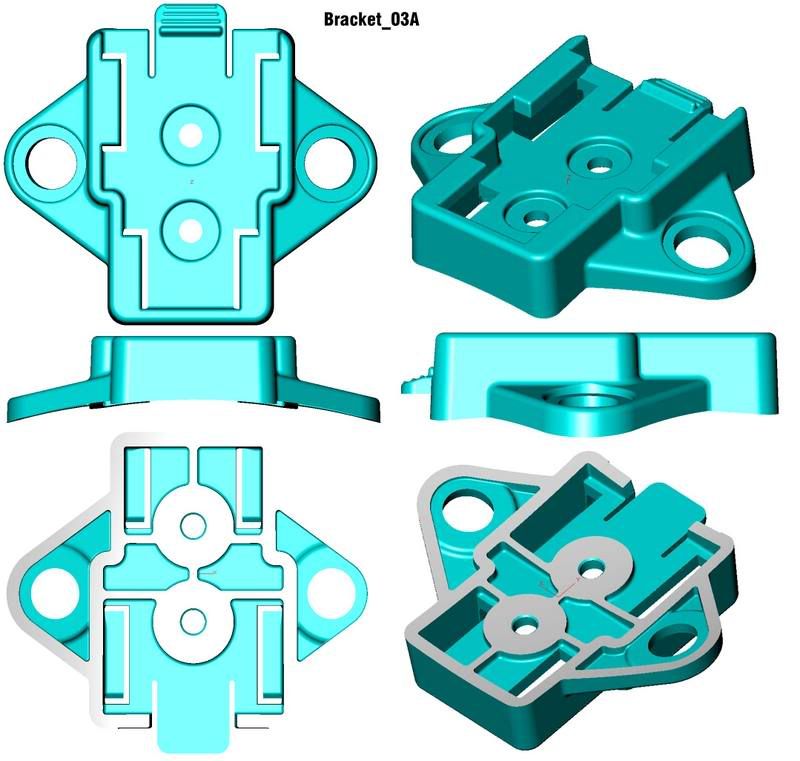

Have a customer who takes screen grabs of a finished model, and merges them in photoshop for a visual record of what that model is (See Bracket_03A.jpg Bottom left view).

Using a white background to save on ink for prints.

Some times with the default lighting the reflections wash out the part and detail is lost.

Does anybody have any suggestions for a quick solution?



The customer also uses 'SolidView' as a file viewer.
This has a 'global' lighting solution and is quick to adjust.

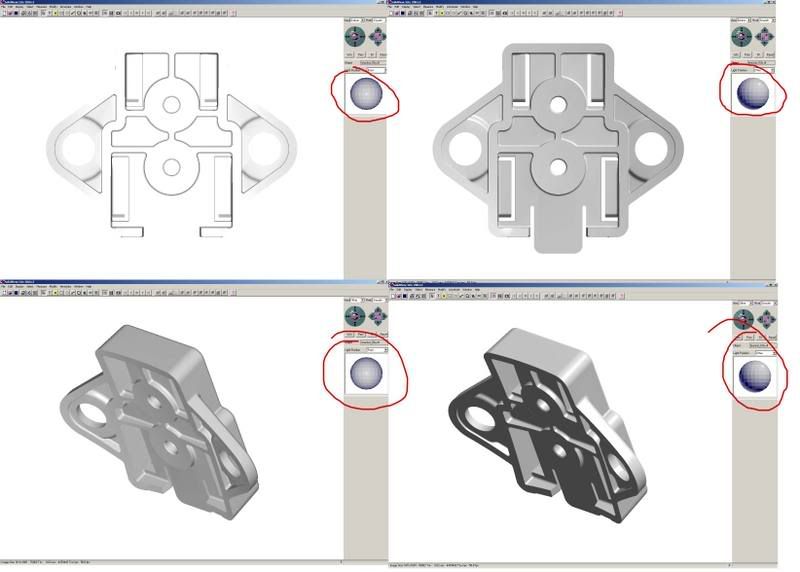

Please see Image_01

Rank: 1

ChrisWard2k2

Newbie

posts: 2

Registered: 2011-11-22

Message 2 of 3

24-05-2007 06:30 . pm | View his/her posts only
Hi Rhys

The answer is simple - reduce the reflectivity of the model via the Face Attributes form.

Rank: 1

Rhys

Newbie

posts: 0

Registered: 2006-5-15

Message 3 of 3

25-05-2007 03:11 . am | View his/her posts only
Hi Chris

Yep after posting I looked in the face attributes form and noticed we can change 'diffuse' and 'reflectance' options using the slider bar.

Thanks
